- Resolution : 0.01mm or .0005″/0.01mm
- Display : LCD, 6-digit
- Length standard : ABSOLUTE electrostatic capacitance type linear encoder
- Max. response speed : Un limited
- Battery : SR44 (1 pc.), 938882
- Battery life : Approx. 5000 hours under normal use
Mitutoyo

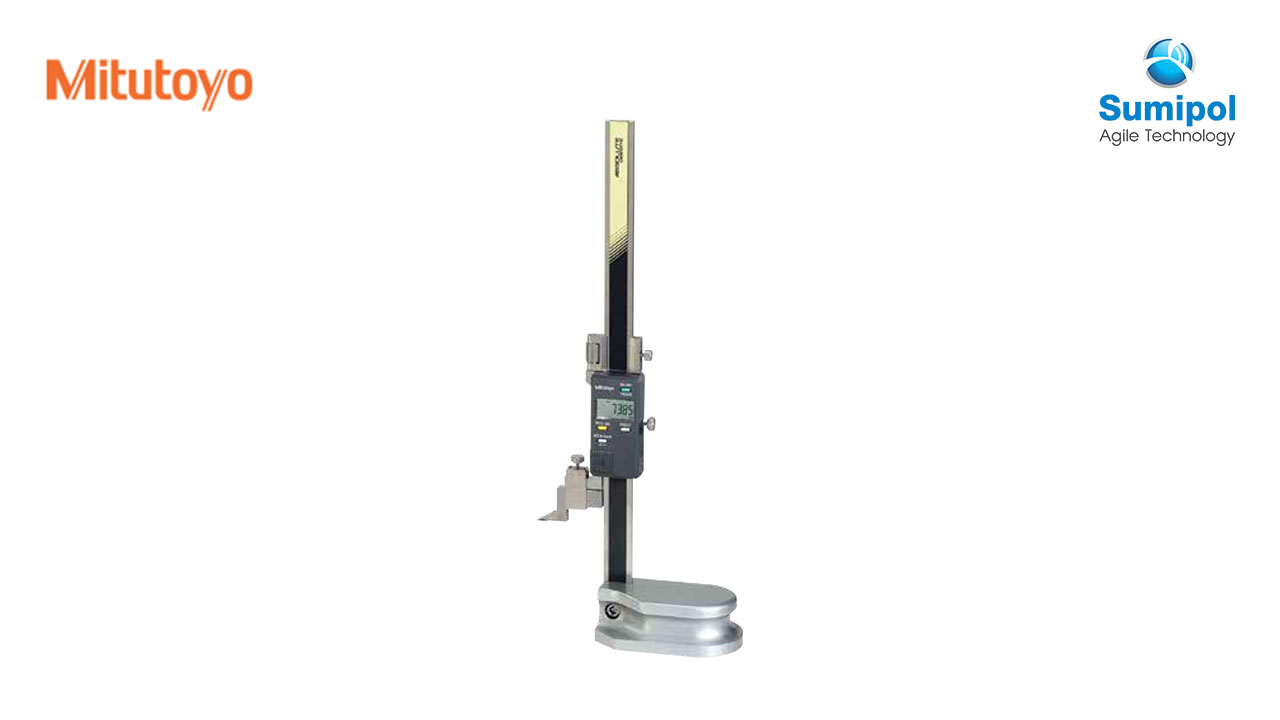

ABSOLUTE Digimatic Height Gage Series 570 — Standard model
with ABSOLUTE Linear Encoder
- Built-in ABSOLUTE linear encoder this encoder eliminates the necessity of setting the reference point at every poweron. It has improved reliability because no over-speed error will occur.
- Fine-adjustment carriage for smooth movement.
- Carbide-tipped scriber is provided.
- With SPC data output.
